Manaras Replacement Parts - TRANSF037/TRANSF088/TRANSF143 Class II 24VAC Transformers

New For 2025

The Manaras Class II 24VAC Transformers - TRANSF037/TRANSF088/TRANSF143, are engineered to deliver high-efficiency power solutions for your industrial applications. These transformers are designed with a robust open frame and panel mount construction, providing reliable 24VAC output for a variety of systems. With multiple input voltage options, including 240V, 208V, and 480V configurations, the TRANSF series ensures flexibility for different setups.

VERSATILE VOLTAGE INPUT: Options for 240V/208V (TRANSF037), 480V (TRANSF088), and 120/240V (TRANSF143) for diverse application needs
POWERFUL OUTPUT: Provides stable 24VAC output at a power rating of 40 VA, suitable for various equipment
SAFETY FIRST: Designed with Class II insulation and certified by UL and CE for optimal safety in operation
ROBUST CONSTRUCTION: Open frame enclosure type and panel mount design for easy installation in compact spaces
EFFICIENT OPERATION: Natural air cooling system ensures the transformer operates efficiently within a wide temperature range

Technical Specifications:

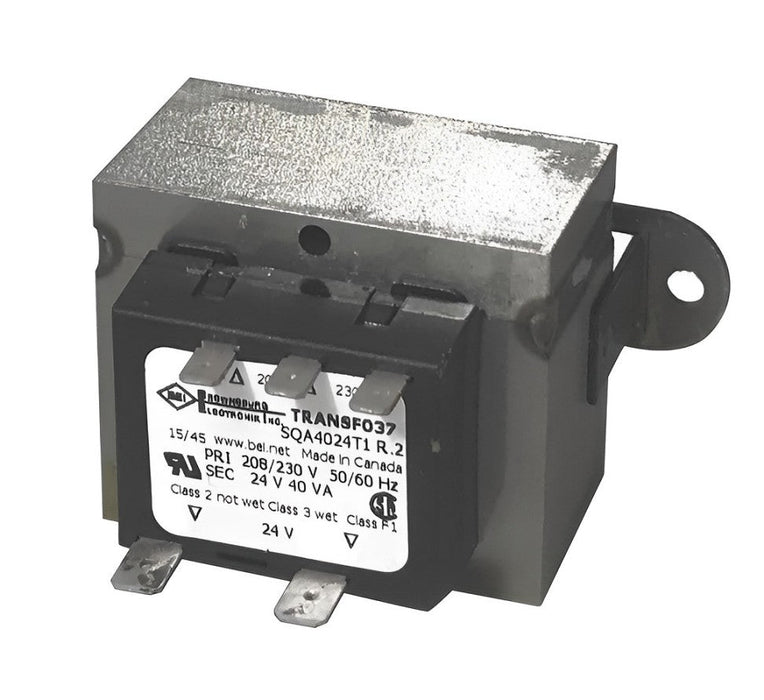

Manaras TRANSF037 240/208/24V 40VA Transformers:

• Model: TRANSF037

• Input Voltage: 240V / 208V

• Output Voltage: 24V

• Power Rating: 40 VA

• Phase: Single Phase

• Frequency: 60 Hz

• Mounting Type: Panel Mount

• Enclosure Type: Open Frame

• Cooling Type: Natural Air Cooling

• Insulation Class: Class II

• Operating Temperature Range: -10°C to +40°C

• Certifications: UL Listed, CE Certified

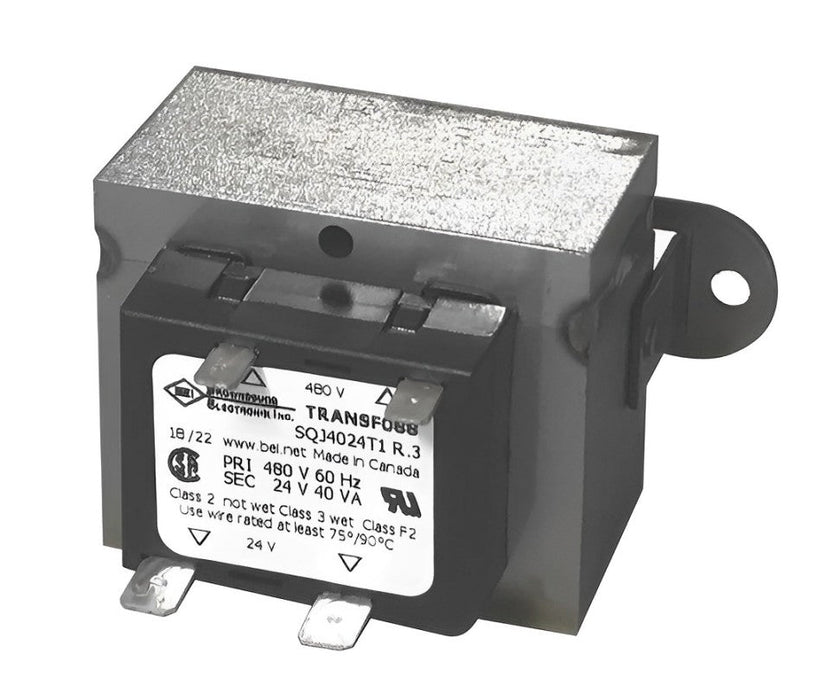

Manaras TRANSF088 480/24V 40VA Transformers:

• Model: TRANSF088

• Input Voltage: 480V

• Output Voltage: 24V

• Power Rating: 40 VA

• Phase: Single Phase

• Frequency: 60 Hz

• Mounting Type: Panel Mount

• Enclosure Type: Open Frame

• Cooling Type: Natural Air Cooling

• Insulation Class: Class II

• Operating Temperature Range: -10°C to +40°C

• Certifications: UL Listed, CE Certified

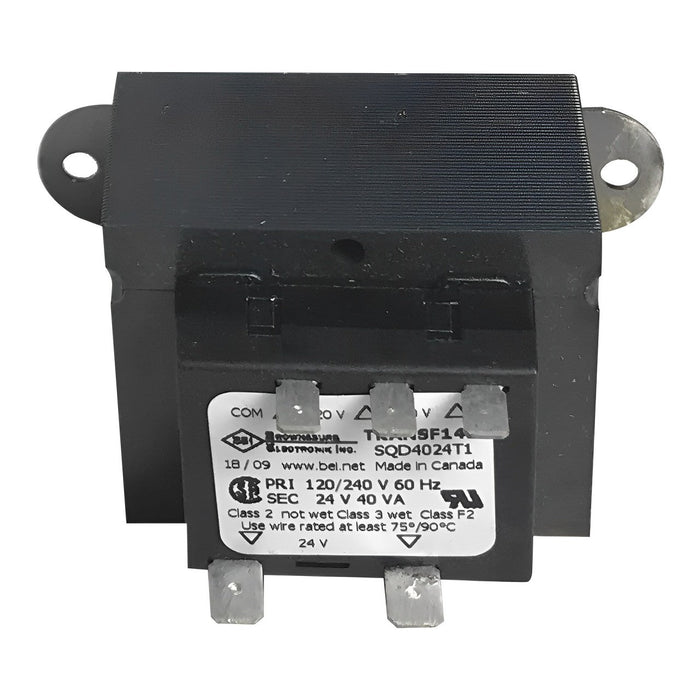

Manaras TRANSF143 120/240-24V 40VA Transformers:

• Model: TRANSF143

• Input Voltage: 120V / 240V

• Output Voltage: 24V

• Power Rating: 40 VA

• Phase: Single Phase

• Frequency: 60 Hz

• Mounting Type: Panel Mount

• Enclosure Type: Open Frame

• Cooling Type: Natural Air Cooling

• Insulation Class: Class II

• Operating Temperature Range: -10°C to +40°C

• Certifications: UL Listed, CE Certified

Enhance your industrial systems with the Manaras Class II 24VAC Transformers, ensuring reliable power delivery and compliance with safety standards.
