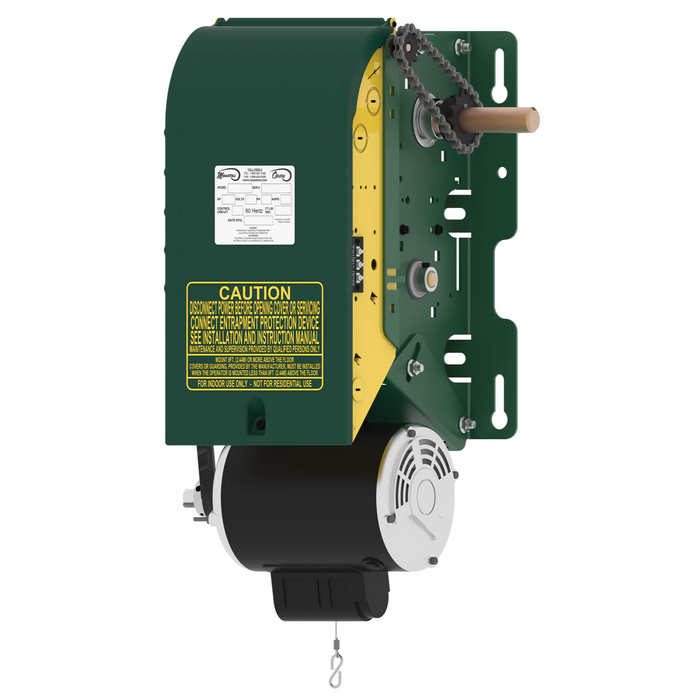

Manaras Replacement Model - Opera-J Commercial Heavy Duty Jackshaft Operator with 1/2, 3/4, 1 Horsepower (HP) Motors

Opera-J Jackshaft Operator 710-M-OPJ Series is engineered to provide reliable and versatile performance for overhead door operations. This operator offers versatile voltage options—120V, 208V, 240V, 480V, and 600V—and is adaptable to both single-phase and three-phase power setups, ensuring compatibility with a wide range of electrical environments. Its mechanical brake and NEMA 1-rated electrical enclosure further enhance safety and reliability, protecting internal components from dust and light water exposure.

The Opera-J Jackshaft Operator features a durable baked-on enamel finish, providing resistance against wear and tear, corrosion, and the elements, ensuring longevity and dependable service. With flexible mounting options (wall, hood, or shelf mounted), this operator can be installed according to the specific requirements of your facility.

RELIABLE PERFORMANCE: The Opera-J Jackshaft Operator 710-M-OPJ Series offers dependable door control with 1/2 HP, 3/4 HP, and 1 HP motor options.
VOLTAGE FLEXIBILITY: Compatible with a range of voltages: 120V, 208V, 240V, 480V, and 600V; supports both single-phase (1Ph) and three-phase (3Ph) power systems.
DURABLE DESIGN: Baked-on enamel finish for enhanced durability and resistance to corrosion and harsh conditions.
SAFETY FEATURES: Includes overload protection, a friction clutch to prevent jamming, and a mechanical brake for reliable operation.
MOUNTING OPTIONS: Versatile installation options including wall, hood, or shelf mounting for optimal convenience and adaptability.

Technical Specifications:

• Motor Power Options: 1/2 HP, 3/4 HP, 1 HP

• Voltage Options: 120V, 208V, 240V, 480V, 600V

• Phase Compatibility: 1Ph (single-phase) and 3Ph (three-phase)

• Current Range: 0.8 to 13.6 Amps depending on the model

• Frequency: 60Hz

• Enclosure: Open drip proof (ODP)

• Input Shaft: 5/8" diameter

• Output Shaft: 1" with a 1/4" keyway

• Output Shaft Speed: 41 RPM

• Clutch Type: Friction clutch

• Drive Type: #50 roller chain

• Sprocket: 50B12 sprocket for the operator drive shaft

• Door Sprocket: Selected for a door travel speed of 6"/s to 12"/s

• Brake Type: Mechanical

• Electrical Enclosure Type: NEMA 1 rated

• Limit Type: Rotary-type, oil-impregnated steel cams

• Frame & Enclosure Finish: Baked-on enamel finish

• Mounting Options: Wall, hood, or shelf mounts

• Weight: Approximately 65 lbs (30 kg)

• Warranty: 2-year

Elevate your facility's automation and security with the Opera-J Jackshaft Operator, designed for high performance and reliability in various demanding environments.
