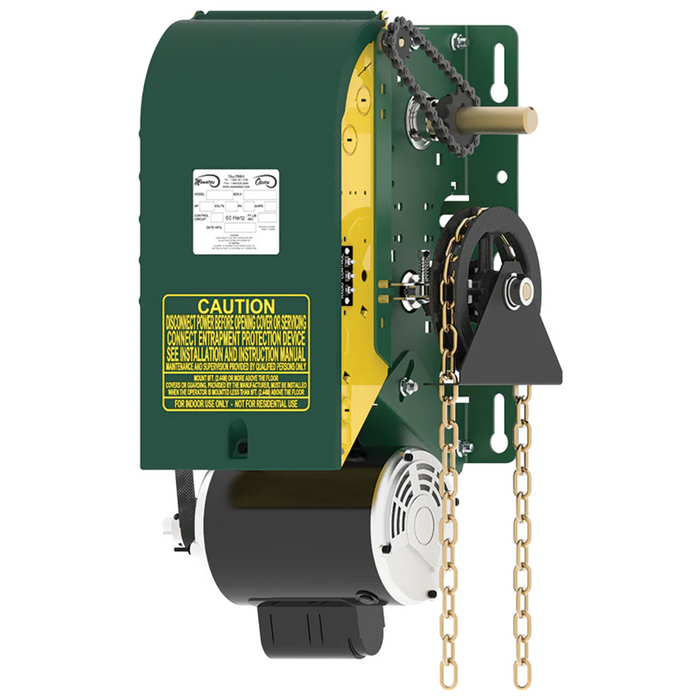

Manaras Replacement Model - Opera-H Heavy Duty Jackshaft Operator with 1/2, 3/4, 1 Horsepower (HP) Motors and Hoist

The Opera-H Jackshaft Operator series is equipped with a robust mechanical brake and a durable Nema 1 electrical enclosure. The open drip-proof (ODP) design ensures protection against environmental factors, while the overload protection feature enhances safety and reliability during operation.

MULTIPLE MOTOR OPTIONS: Available in 1/2 HP, 3/4 HP, and 1 HP to meet various operational needs.
VERSATILE VOLTAGE AND PHASE COMPATIBILITY: Supports a range of voltage options (120V, 208V, 240V, 480V, 600V) and is available in single-phase (1Ph) and three-phase (3Ph) configurations.
DURABLE AND RELIABLE: Features a mechanical brake, NEMA 1 electrical enclosure, and open drip-proof (ODP) design with overload protection.
EASY INSTALLATION: Flexible mounting options including wall, hood, or shelf mounted for convenience.
ROBUST DRIVE SYSTEM: Equipped with a #50 roller chain drive and a 50B12 drive shaft sprocket for smooth operation.

Technical Specifications:

• Motor Power Options: 1/2 HP, 3/4 HP, 1 HP

• Voltage Options: 120V, 208V, 240V, 480V, 600V

• Phase Compatibility: 1Ph (single-phase) and 3Ph (three-phase)

• Current Range: 0.8 to 13.6 Amps depending on the model

• Brake Type: Mechanical Brake

• Electrical Enclosure: NEMA 1

• Mounting Type: Wall, Hood, or Shelf Mounted

• Frequency: 60 Hz

• Protection: Open drip proof (ODP) design, overload protection

• Input Shaft: 5/8" diameter

• Output Shaft: 1" diameter with 1/4" keyway

• Output Shaft Speed: 41 RPM

• Drive Type: #50 roller chain

• Operator Drive Shaft Sprocket: 50B12 sprocket

• Limit Type: Rotary-type with oil-impregnated steel cams

• Frame and Enclosure: Protected by a baked-on, long-lasting enamel finish

• Shipping Weight: Approx. 86 lb (39 kg)

• Warranty: 2-Year Limited Warranty

Elevate your overhead door operation with the Opera-H Jackshaft Operator series, offering advanced functionality, durable construction, and reliable performance for a wide range of applications.
