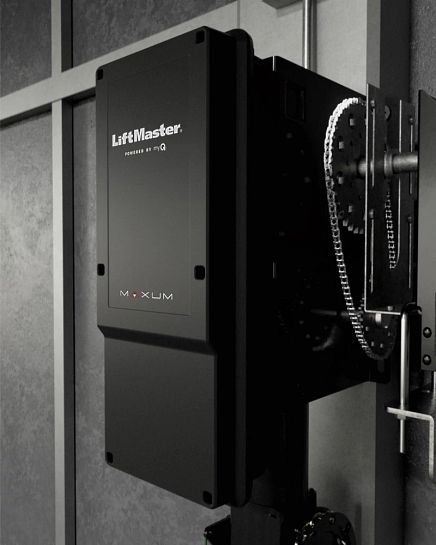

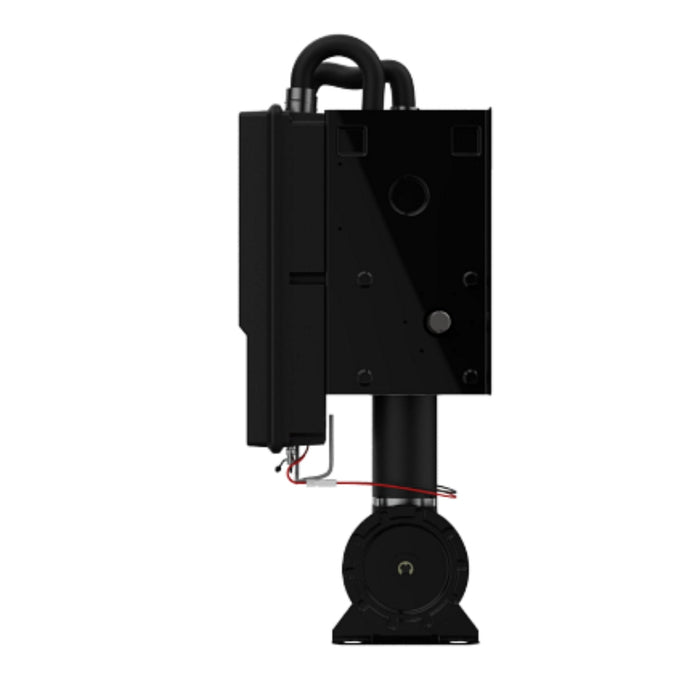

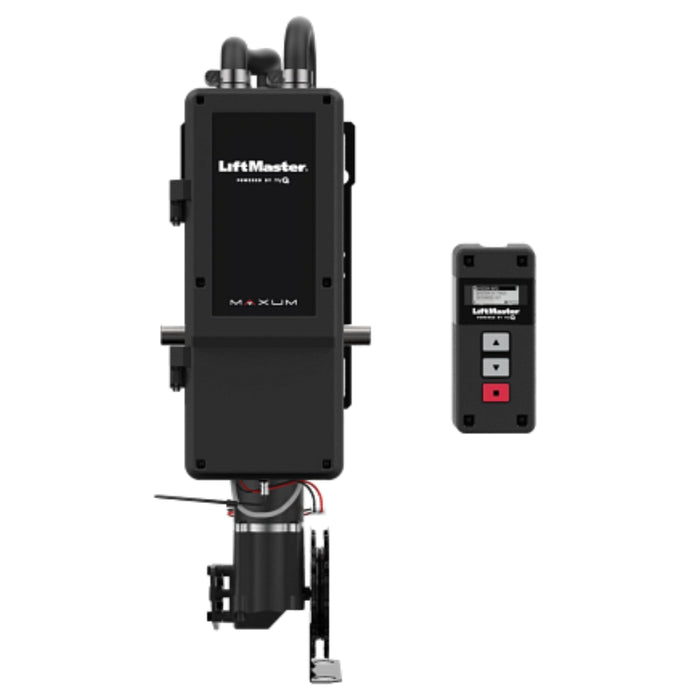

LiftMaster Replacement Parts - MAXUM JHDC JackShaft Hoist DC Standard/Extended Duty Commercial Operator with CPS-U Through-Beam Photo Eye Kit and Battery Backup (BBU)
SKU 710-LMC-JHDC12S1B
Save 30%
Original price
$2,602.15
Original price
$2,128.76
-
Original price
$2,999.47
Original price
$2,602.15
Current price
$1,820.99
$1,488.99
-
$2,098.99
Current price
$1,820.99
Product Description
LiftMaster Replacement Parts - MAXUM JHDC JackShaft Hoist DC Standard/Extended Duty Commercial Operator with CPS-U Through-Beam Photo Eye Kit and Battery Backup (BBU) - 100% OEM Manufacturers with New Production Dates for US Vendor GarageDoorProject® -
New For 2025
The MAXUM JHDC Standard/Extended Duty Jackshaft Hoist is a high-performance commercial operator designed to handle doors weighing up to 1200 pounds, providing faster, smoother, and more reliable door operation. With its 120/240V 1Ph and 240V 3Ph compatibility, this hoist ensures flexible power options, making it suitable for various commercial environments. The inclusion of the CPS-U Monitored Through-Beam Photo Eye Kit adds an advanced layer of safety, offering precise obstruction detection for enhanced protection.
FAST OPERATION: Opens doors up to 33% faster, with an average speed of 12 inches per second for sectional doors and 8-9 inches per second for rolling steel doors
COMPATIBLE WITH MULTIPLE POWER SOURCES: Supports 120V/240V single-phase, 240V three-phase, and BBU for uninterrupted power and operation
SMART MONITORING: Built-in Wi-Fi for myQ® Facility and myQ Enterprise compatibility, offering real-time diagnostics, maintenance alerts, and operational insights
ENHANCED SAFETY: Includes the CPS-U Monitored Through-Beam Photo Eye Kit for reliable obstruction detection, meeting UL 325 safety requirements
DURABLE AND RELIABLE: Features a 65:1 gearbox with #50 chain output, electronic limits, and NEMA 1 enclosure for durability and long-lasting performance in commercial environments
Technical Specifications:
- Product Name: MAXUM JHDC Jackshaft Hoist
- Operation: Jackshaft Hoist Battery Backup Capable
- Drive Type: 65:1 Gearbox with #50 Chain Output
- Mounting: Wall Mount or Door Hood
- Enclosure: NEMA 1
- Meets: UL 325 Requirements
- Limit System: Electronic Limits
- Battery Backup: Capable w/ accessory kit 7 DC7AH only
- Monitored Safety Inputs: 3 Inputs
- Radio Receiver: Security + 2.0
- Motor Type: 24VDC Motor Drive
- Programmable Inputs: Yes
- Soft Start/Stop: Yes
- Warranty: 2 Years
- Speed/Per Second:
- Faster Speed
- 12" On Average For Sectional
- 8–9 Inches For Rolling Steel Doors - myQ Compatibility:
- Works with myQ
- myQ Facility
- myQ Enterprise - Duty Cycle Per Hour p/h & Per Day p/d:
- Standard - 20 cycles p/h /90 p/d
- Extended - 30 cycles p/h /150 p/d - Motor Reverse Action Protection:
- Stop Fast: 250ms Ramp
- Stop Ramp: 500ms-2000ms; Stop Button While Opening
- Emergency (Safety-Chain) CTM Triggers Immediate Stop - Voltage Connections:
- 120Vac 1PH
- 240Vac 1PH/3PH
- 208Vac 3PH (via transformer)
- 480Vac 3PH (via transformer)
- 600Vac 3PH (via transformer) - Maximum Door Weight:
- JHDC7S1BMC Hoist 700 lbs
- JHDC7S4BMC Hoist 700 lbs
- JHDC12S1BMC Hoist 1200 lbs
- JHDC12X1BMC Hoist 1200 lbs
Enhance your facility’s efficiency and security with the MAXUM JHDC Standard Duty Jackshaft Hoist—fast, reliable, and designed for demanding commercial environments.
